AEONrv EXT
More towing.
More cargo.
More time off-grid.
EXT means extended. An extra 18 inches delivers true 4-adult sleeping with dual twin beds, a larger convertible dinette, a gear garage big enough for 4 bikes.
.avif)
Sleeps
4 Adults

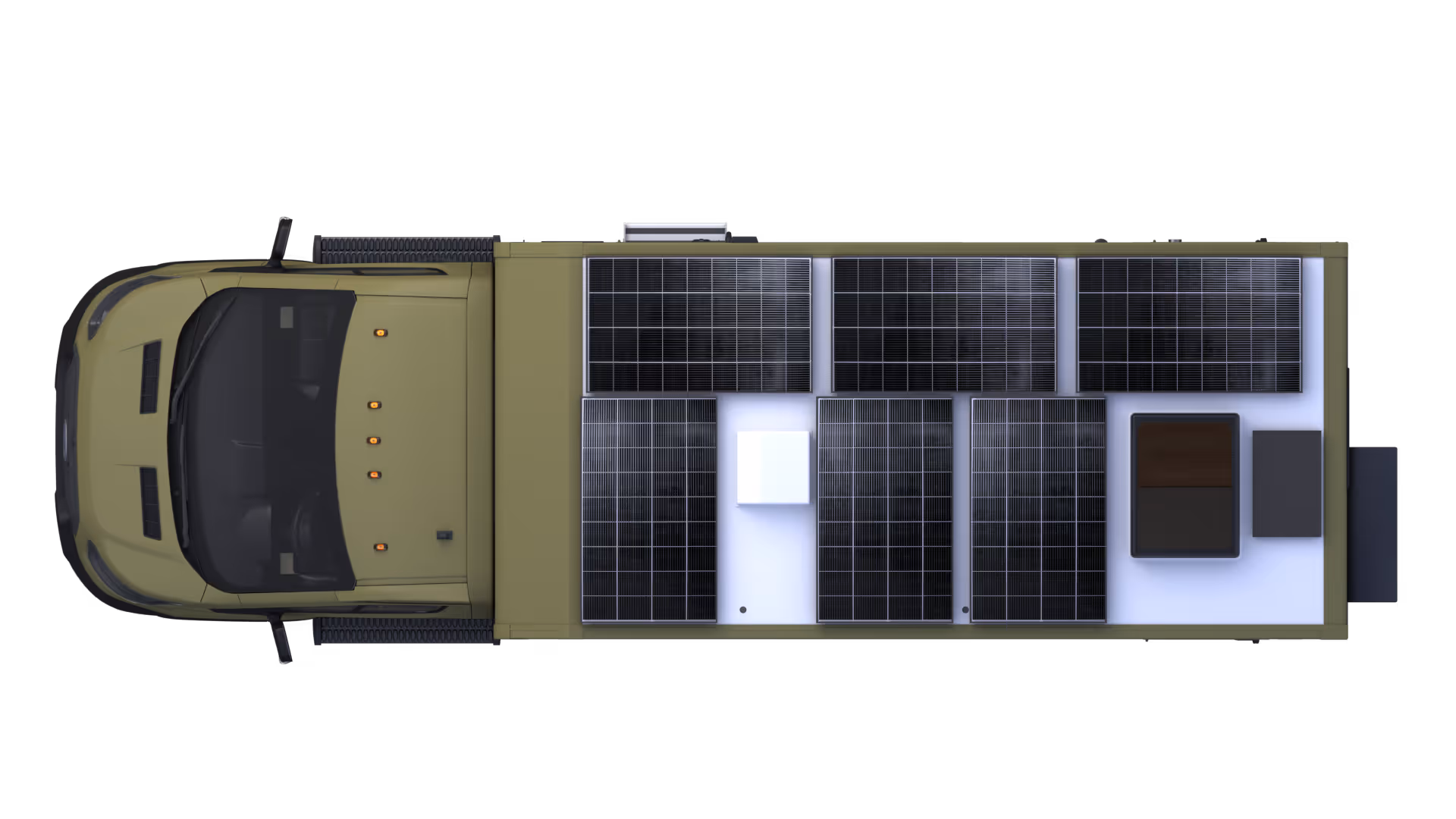

Solar
1200 Watt
Water
70 Gal
Battery
15,360 Wh
Length - 23' 6"
Height - 10'
Width - 7' 2"
GVWR - 11,000 lbs
True 4-Adult Person RV

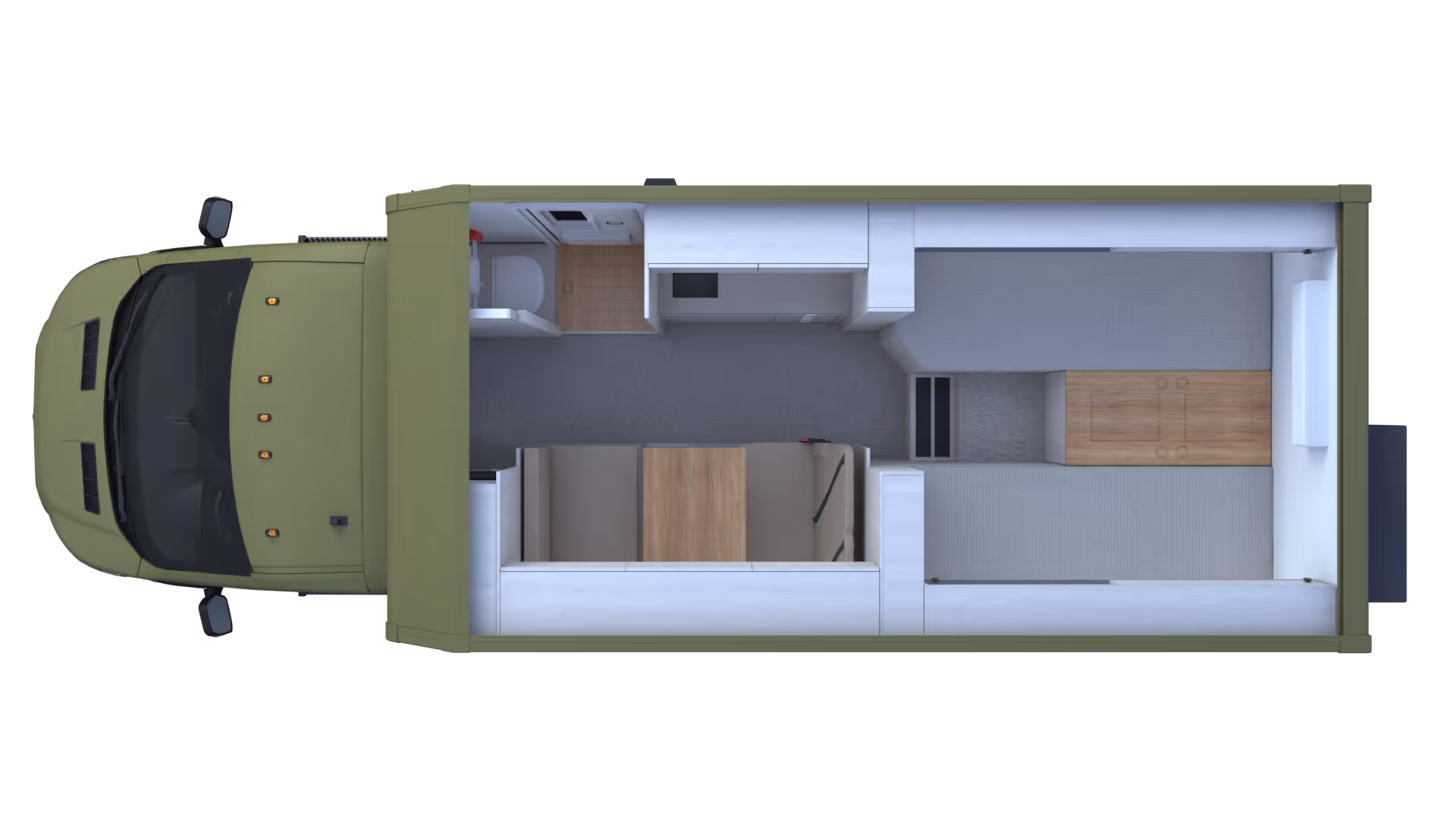

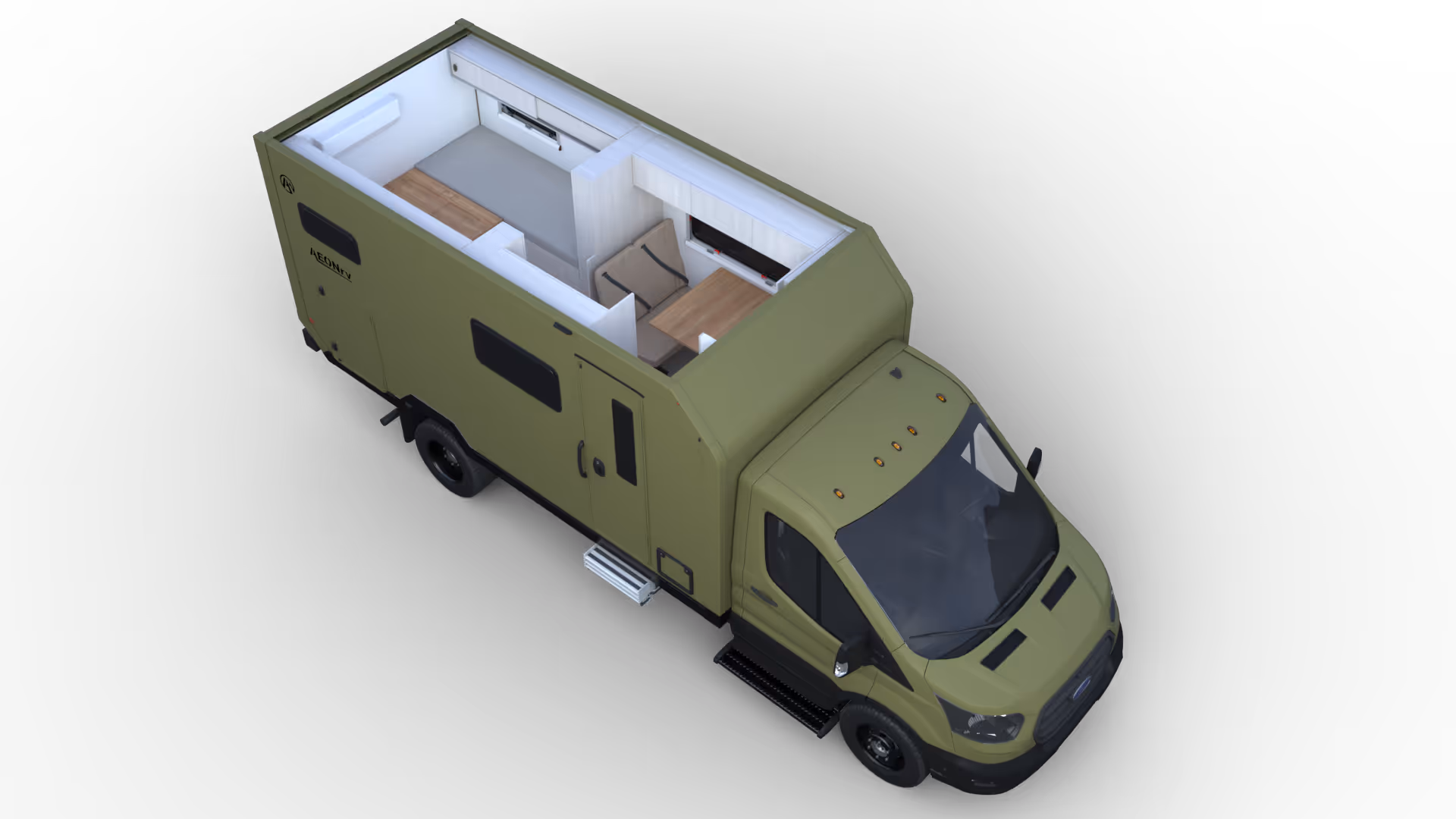

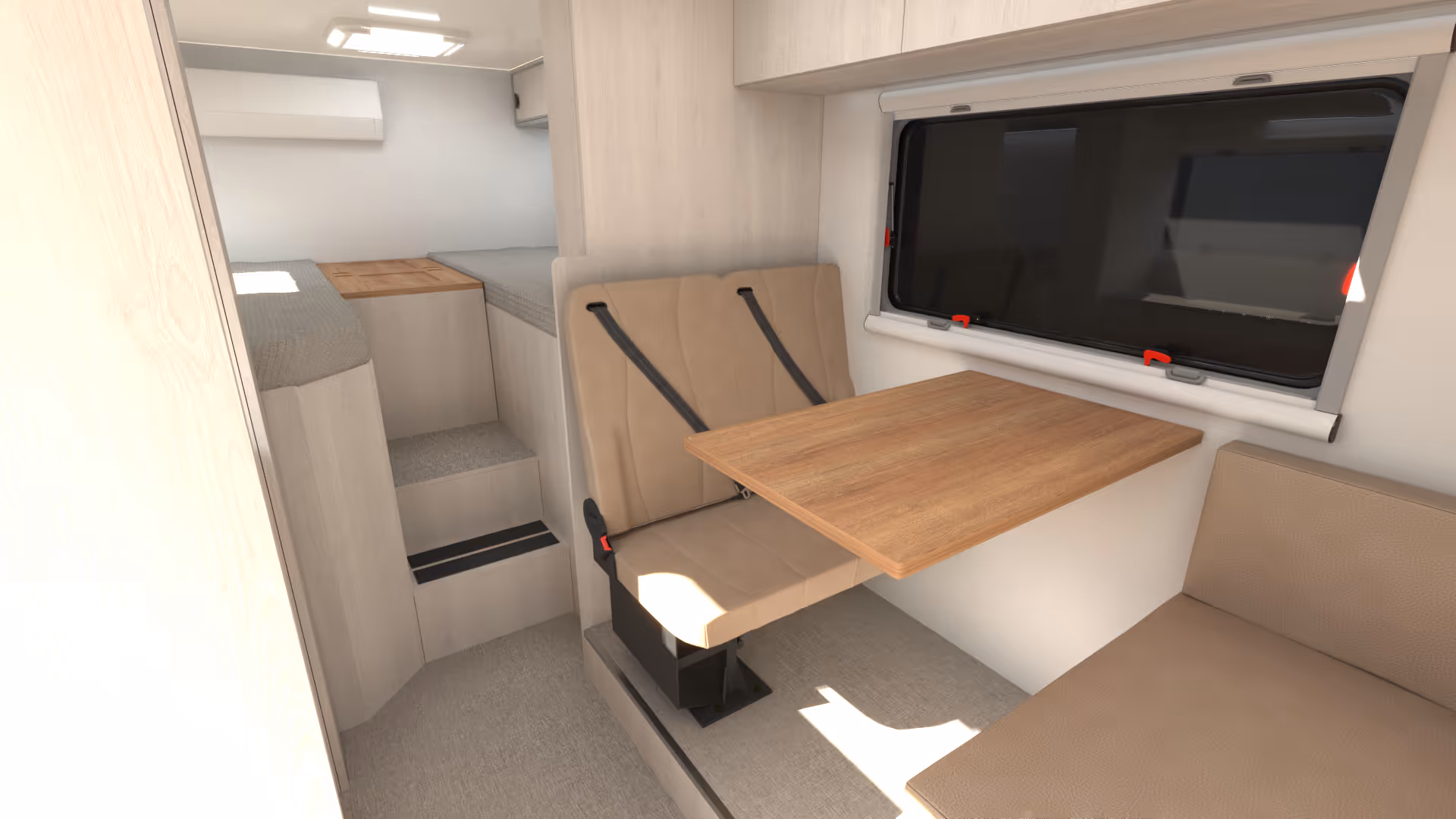

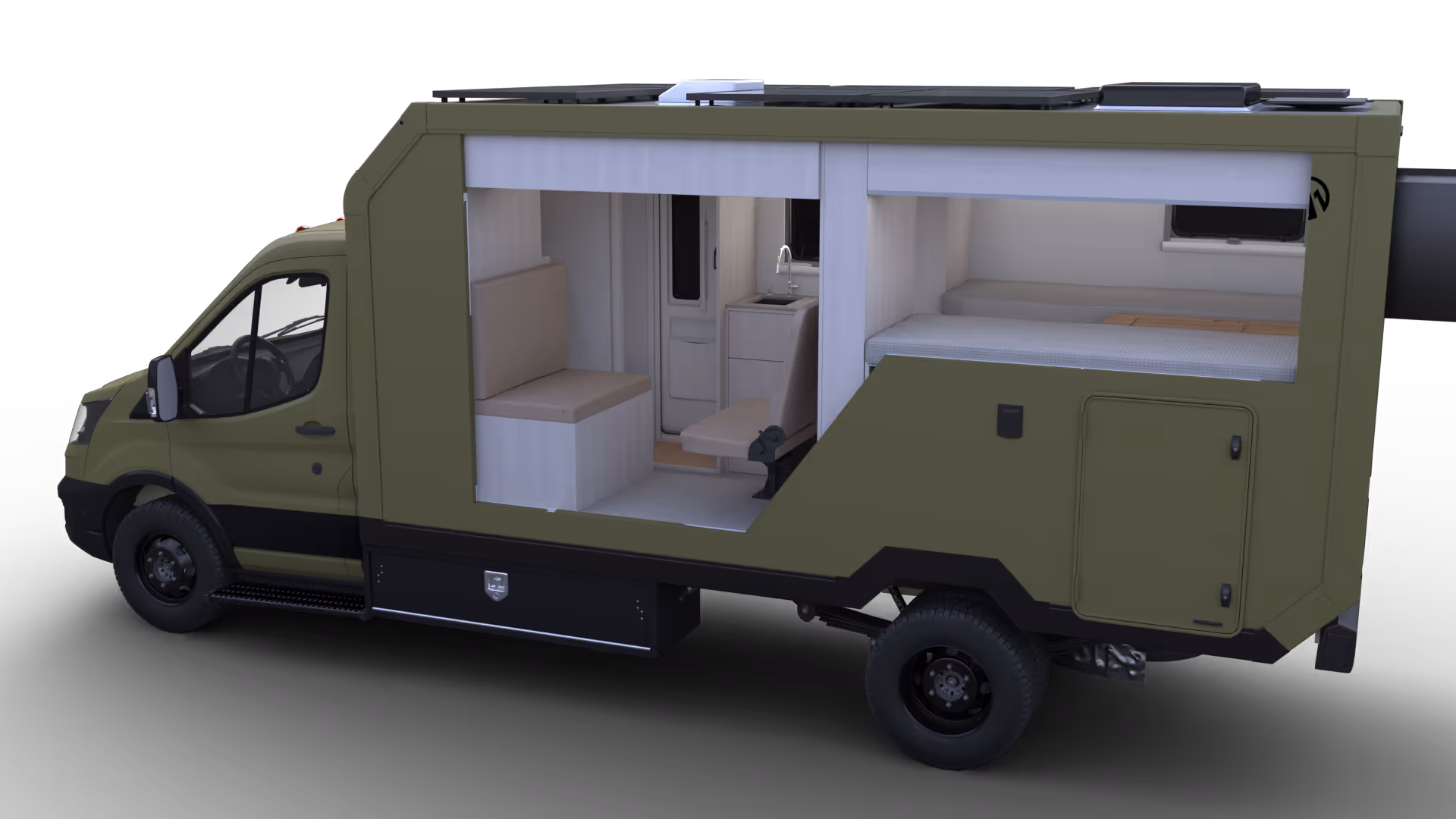

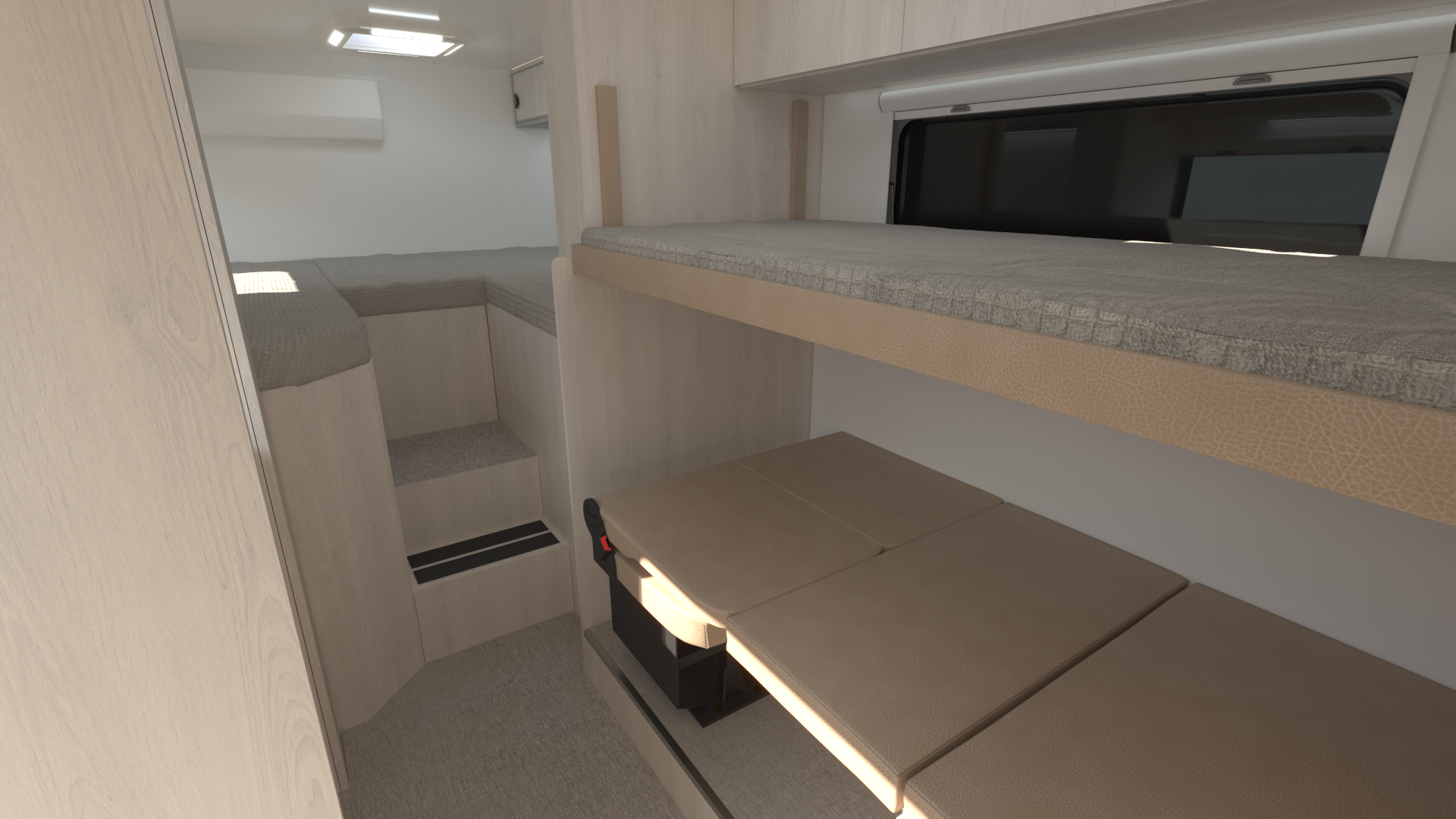

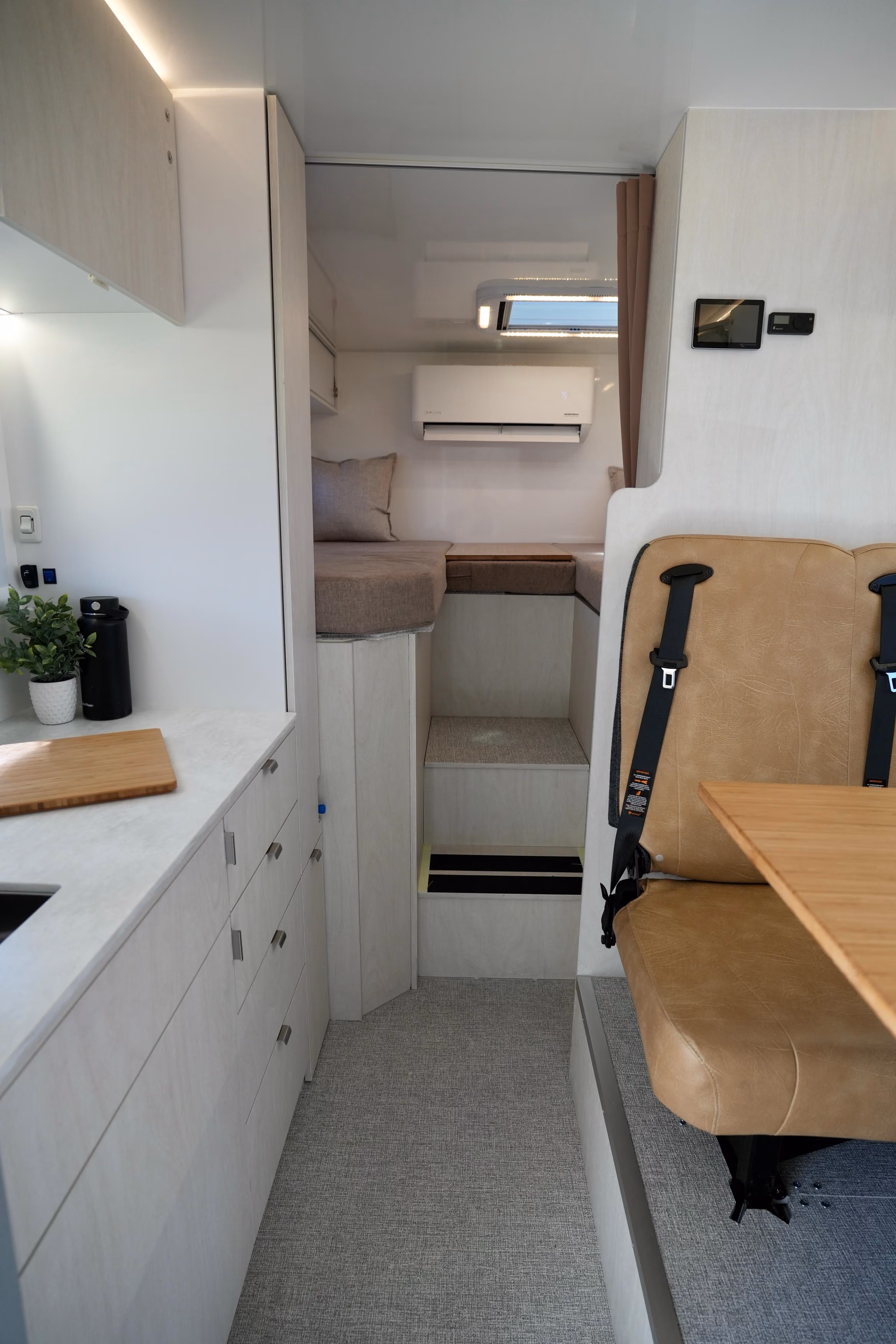

Two north-south twins in the back (78" x 32" and 76" x 32") join with a flexible cuddle cushion (39" x 18") for a small child or dog, and the dinette converts to a 71" x 36" bunk.
How This Model Compares
| Feature | Original AEONrv | New AEONrv EXT |
|---|---|---|
| Solar | 800W | 1200W |
| Max Power Battery Storage | 13.8kWh | 15.36kWh |
| Fresh Water | 50G | 70G |
| Sleeps | 2 adults plus 1 child | 3 or 4 adults |
| Gray Tank | 25G | 35G |
| Bike Storage for | 3 Bikes | 4 Bikes |
| GVWR | 9,950# | 11,000# |
| Rear Axle Weight Limit | 6,100# | 7,100# |
| Gear Garage Volume | 65 cu. ft. | 70 cu. ft. |
| Gear Garage Door Width | 23.6" | 27.5" |
| Ford Co-Pilot360 Assist | N/A | Included |
| OCCC | 1,350# | ~2,000# (estimate) |
| Max Towing Capacity | 3,500# with 13,000# GCWR | 5,000# with 15,000# GCWR |
| Total Length | 22' | 23' 6" |
| Total Height | 10' | 10' |
| Total Width | 7' | 7' 2" |
| Optional Super Single Suspension Upgrade | N/A | Details coming soon. |
| Wheels & Tires | Single rear wheel BFGoodrich KO3 LT245/75R16 on black powder coated OEM steel wheels | Dual rear wheels with Toyo Open Country A/T III LT215/85R16 on Torque Wheels satin black aluminum 16" rims |
| Price | $224,500 | $239,500 |
Built on the Ford Transit 2026 AWD
1-Ton 178” Wheelbase Cutaway Chassis
No Wood

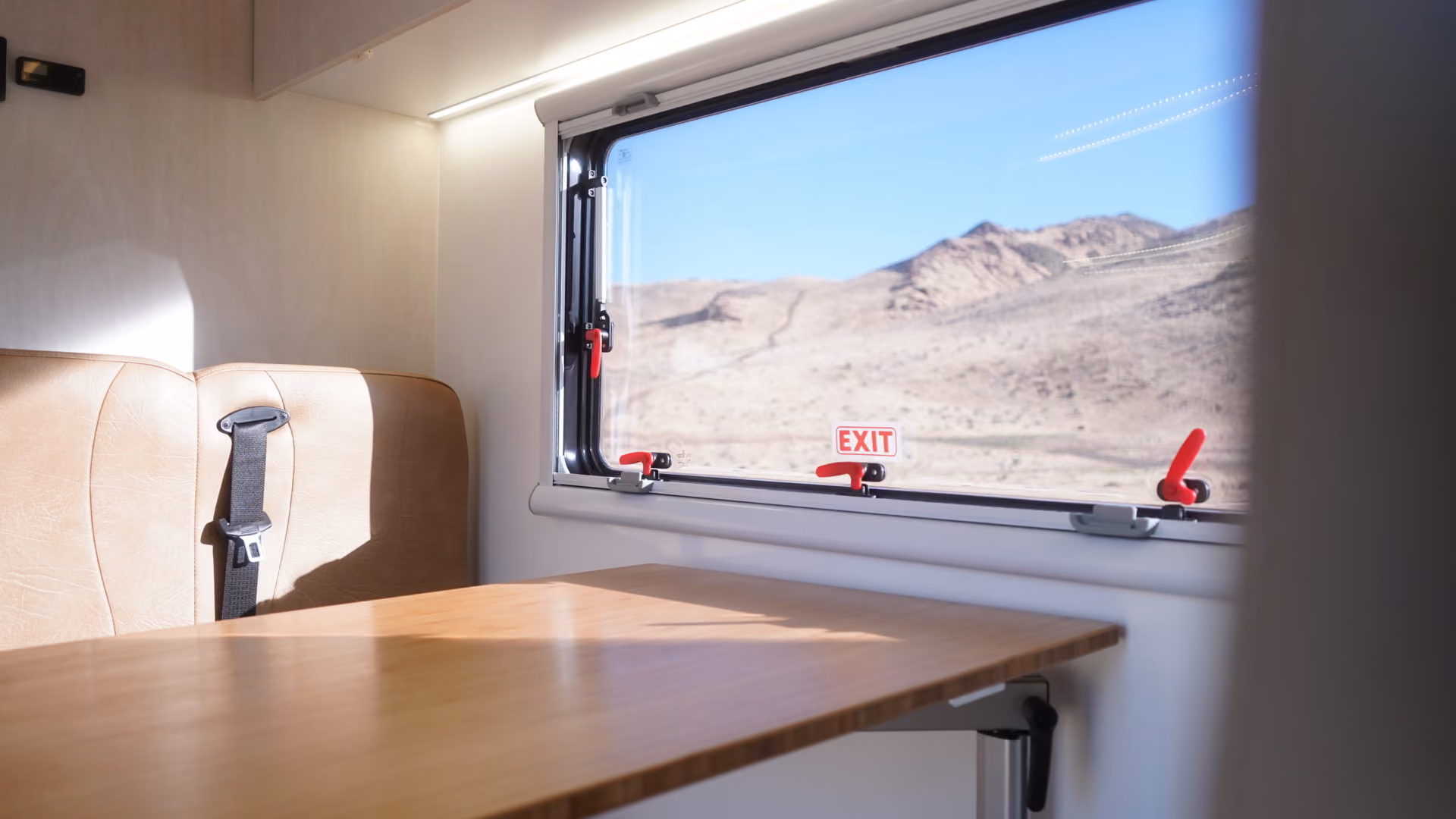

Our interior is built with an all-composite construction, with no wood used in the cabinets or wall panels. The only exception is the bamboo Plyboo we use for the tabletop, cutting board, and shower floor. This updated material is about 50% lighter than our previous thermally fused laminate cabinetry and offers a more sustainable solution, thanks to a PET structural foam core made from recycled water bottles.
Stay Off-Grid Longer.
AEONrv EXT runs on Victron Energy NG batteries: two 25.6V-200Ah batteries standard for 10.24kWh of storage, expandable to 15.36kWh with an optional third 5.12kWh battery ($3k). Charging comes from two of the latest Victron 24V-50A DC-DC chargers connected to the 250A Transit alternator, plus the 1,200W solar panel array.
Built to Go Further. Built to Last.
Four-Season Protection
Highly insulated walls, floor, and roof, dual-pane acrylic windows, and a lockable insulated cab door help maintain comfort in hot and cold conditions..
High-Tech Systems
Victron energy monitoring, remote system access, and integrated connectivity let you manage your RV from anywhere. Smart adventure, simplified.
Built for Rough Roads
Ford factory AWD with a Van Compass 2" lift, Falcon rear shocks, and dual rear wheels on Toyo Open Country A/T III all-terrain tires. A steel differential skid plate and rear recovery points keep you moving where other RVs turn back.
Warranty Backed Engineering
2-year / 24,000-mile bumper-to-bumper coverage, a 10-year structural box integrity warranty, and a 3-year lithium battery warranty, with additional manufacturer warranties on select appliances and components.
.avif)
Contact Us for More Information
Speak with our team to receive full specs and launch timing.
Coming Soon
Production capacity will be limited. Early reservations will receive priority build placement.
Configure:
Let us know your options and add ons you would like to add.
Connect:
Book a 15-minute Discovery Call or a Factory Tour in Reno to get your questions answered.
Reserve
Secure your place in our production line with a fully refundable $1,000 deposit.
Get in the Queue
Introductory price $239,500. Secure your EXT production spot with a $1,000 refundable deposit.
